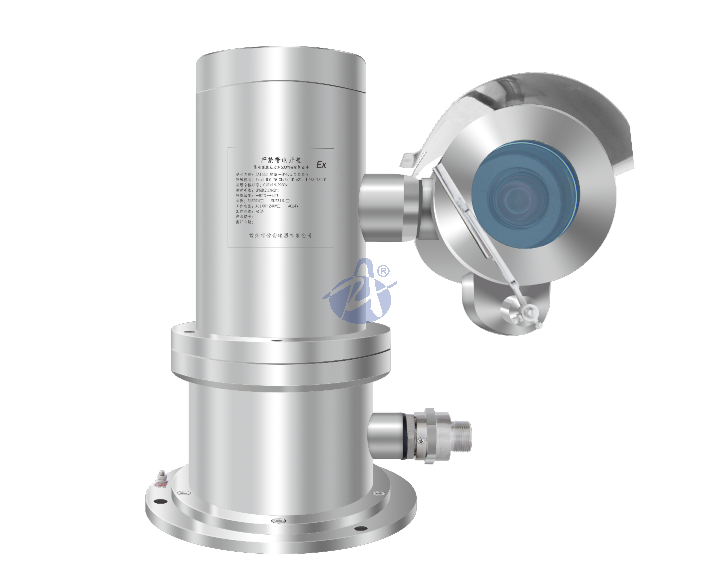

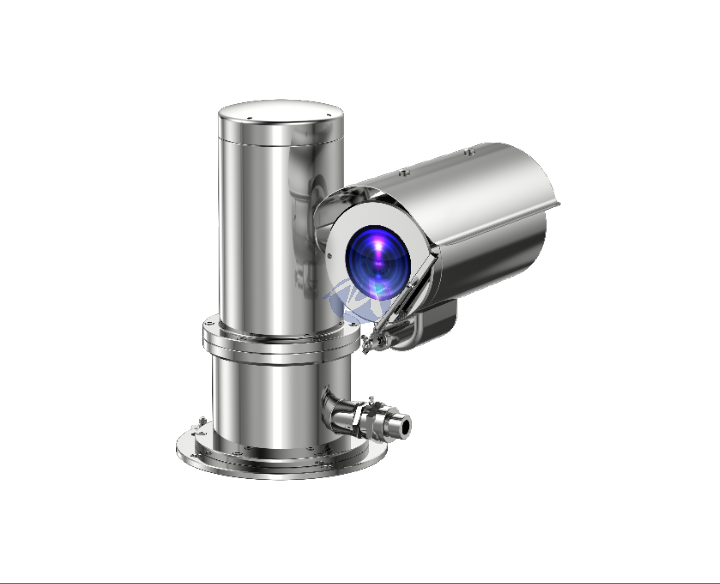

Camera PTZ chống cháy nổ CZ610-B 2MP 30X ATEX

Liên hệ

Mã sản phẩm: CZ610-B
Tình trạng: Còn Hàng
Xuất xứ: Trung Quốc
Bảo hành: 12 Tháng
Hotline
Hà Nội: 0914 348 397

Certificate

ATEX Certificate Mark Ex Ⅱ2G Ex db ⅡC T6 Gb
Ex Ⅱ2D Ex tb ⅢC T80 ºC Db
Certificate Presafe 17 ATEX 11328X, IECEx PRE
Standards IEC/EN60079

Mechanical

Housing Stainless steel 304 or 316L
Surface Optional electro-polish or painting
Ingress protection IP68 (1.2m/ 45min)
Cable thread hole M25×1.5

Electrical

Voltage AC100V~AC240Vor AC24V
Power 50W/70W (with thermostat)
Surge Protect Optional, TVS6000V surge protect
Optical Fiber output Optional, multimode or single mode
Optical Video signal 1-way video output
Optional network signal RJ45
Address code: 0/1
Trail cable 2m integrated cable

Ambient

Ambient temperature -25°~+60°/-40℃~+60℃
Air pressure 80Kpa to 110Kpa
Relative Humidity ≦95% (no condensation)

Communication

Communication type RS485
Protocol Pelco-D, Pelco-P
Communicate Rate 2400~19200bps adjustable
485 Communication Support

Pan & Tilt

Horizontal 360°
Horizontal speed 0.1-45°/s
Vertical -90 to +90°
Cruise Scan Support
Keep watch Support
Preset 64/128/255/300
Resume function Support
Auto Cruise Support
Auto Scan Support

Alarm

Alarm Input 2-channel/ 7-channel
Alarm Output 1-channel, action with alarm
Intelligent Alarm Audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access

Audio

Audio Input Audio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10%
Audio Output Line-level impedance 600Ω



Camera

Image Sensor 1/2.8″ Progressive Scan CMOS
Parameters 20X,4.7-94mm 30X, 4.5-135mm
Aperture Range F1.6-F3.5 F1.6-F4.4
Angle of view 61.4-29 degree (wide -tele) 65.1-2.34 degree (wide -tele)
Effective Pixels/Resolution 50HZ:25fps(1920×1080)
60HZ:30fps(1920×1080)
50HZ:25fps(1280×720)
60HZ:30fps(1280×720)
Digital Zoom 12X
Min. Working distance 10mm-1500mm(wide-tele)
Day&night ICR
Focus mode Auto/manual/one touch
Day&night mode Auto/color/BW
ShutterTime 1/1sec-1/30,000 s
White balance Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/Fluorescent Lamp
BLC ON/OFF
Exposure compensation 10 levels adjustable
Digital WDR ON/OFF, 15 levels adjustable
Imaging setting Saturation, brightness, contrast, sharpness adjustable
Video compression H.264 main profile/MJPEG
Video bit rate 32kbps-16mbps
Audio compression G.722.1/G.711-a law/G.711-u law/MP2L2/G.726
Imaging setting Motion detection, tampering alarm, storage full, storage exception
protocol TCP/IP, HTTP, DHCP, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1*, QoS, HTTPS, IPv6(SIP, SRTP optional)
standard ONVIF, PSIA, CGI, ISAPI
S/N ratio More than 52dB
Minimum illumination Color: 0.05Lux @ (F1.6, AGC ON)
B/W: 0.01Lux @ (F1.6, AGC ON)

General

Size 295*390*420*mm
Net Weight 30kg
Mounted wall, pole
Wall bracket CZ6XXBW
