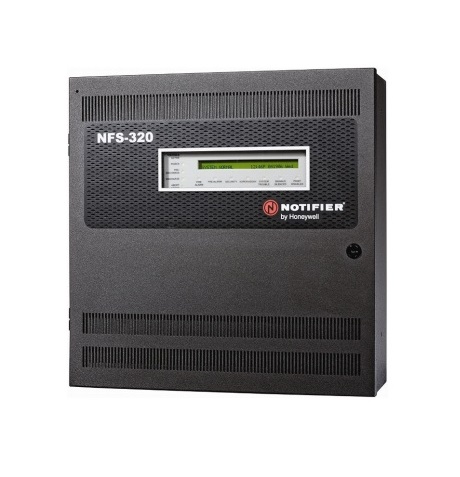

Tủ trung tâm báo cháy địa chỉ 1 loop Notifier NFS320-E

Mô tả sản phẩm Tủ trung tâm báo cháy địa chỉ 1 loop Notifier NFS320-E

• Trung tâm báo cháy 1 Loop NOTIFIER NFS320-E- The NFS-320E intelligent Fire Alarm Control Panel is part of the ONYX Series of Fire Alarm Controls from NOTIFIER. In stand-alone or network configurations, ONYX Series products meet virtually every application requirement.
• Listed to UL Standard 864, 9th edition.
• One isolated intelligent Signaling Line Circuit (SLC) Style 4, 6 or 7.
• Up to 159 detectors (any mix of ion, photo, thermal, or multi-sensor) and 159 modules (Addressable pull stations, normally open contact devices, two-wire smoke, notification, or relay). 318 devices maximum.
• Standard 80-character display.
• 6.0 amp power supply with four Class A/B built-in Notification Appliance Circuits (NAC). Selectable System Sensor, Wheelock, or Gentex strobe synchronization.
• Built-in Alarm, Trouble, Security, and Supervisory relays.
• VeriFire® Tools online or offline programming utility. Upload/Download, save, store, check, compare, and simulate panel databases. Upgrade panel firmware.
• Autoprogramming and Walk Test reports.
• Optional universal 318-point DACT.
• 80-character remote annunciators (up to 32).
• EIA-485 annunciators, including custom graphics.
• Printer interface (80-column and 40-column printers).
• History file with 800-event capacity in nonvolatile memory, plus separate 200-event alarm-only file.
• Alarm Verification selection per point, with tally.
• Autoprogramming and Walk Test reports.
• Presignal/Positive Alarm Sequence (PAS).
• Silence inhibit and Auto Silence timer options.
• NAC coding functions:
  + March time.
  + Temporal.
  + California two-stage coding.
  + Canadian two-stage.
  + Strobe synchronization.
• Field-programmable on panel or on PC, with VeriFire Tools program check, compare, simulate.
• Full QWERTY keypad.
• Battery charger supports 18 – 200 amp hour batteries.
• Non-alarm points for lower priority functions.
• Remote ACK/Signal Silence/System Reset/Drill via monitor modules.
• Automatic time control functions, with holiday exceptions.
• Surface Mount Technology (SMT) electronics.
• Extensive, built-in transient protection.
• Powerful Boolean logic equations.

Thông số kỹ thuật Tủ trung tâm báo cháy địa chỉ 1 loop Notifier NFS320-E

• Primary input power, CPU-320E board: 220/240 VAC, 50/60Hz, 1.5A.
• Total output 24V power: 6.0 A in alarm.
• Standard notification circuits (4): 1.5 A each.
• Resettable regulated 24V power: 1.25 A.
• Two non-resettable regulated 24V power outputs:
  + 1.25 A
  + 0.50 A.
• Non-resettable 5V power: 0.15 A.
• Battery charger range: 18AH – 200AH. Use separate cabinet for batteries over 25 AH.
• Float rate: 27.6V.
